GELLEC Breathable Film
Product Advantage
1、Can filter virus directly, excellent protective performance.
Water permeability resistance
Hydrostatic pressure resistance ≥Level 4
Surface resistance to water
Touch water Level ≥Level 4
Resistance to synthetic blood penetration ≥Level 3
Particulate matter（0.3μm）Filtration efficiency≥99.9%, can filter virus directly.
2、Breathable, low weight, high comfort.
Moisture transmission 3500g/g㎡*d, meet long wear requirements.
Breathable GURLEY values in 20～100s/100ml
Low weight 4～15g/㎡can meet the protection requirements.
3、Tear resistance and wear resistance
High breaking strength, the transverse breaking strength is more than 4 times that of conventional breathable film.
Excellent puncture resistance，φ1mm acupuncture intensity is higher than that of conventional permeable membrane 2N
Product Features

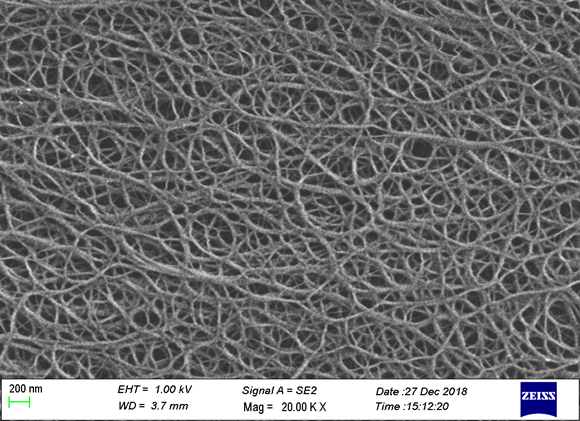

1、Mean aperture small（40-60nm）, Lower than the diameter of most known bacteria and viruses，effective physical barrier, antivirus.
2、Extraction into a hole，uniform aperture，high sinuosity，barrier path length，excellent filtration efficiency.
3、The wet process is used for bidirectional high - fold drawing，pore forming uniform，the bidirectional intermolecular forces are uniform，the transverse strength is significantly better than that of conventional breathable film.
4、No or little inorganic fillers, puncture and tear resistance.
5、UHMWPE raw material, wear resistance.
Features
Gellec FH Series breathable film characteristics
Check List
Unit
9FH Series
12FH Series
Conventional Breathable
Film
Breathable Film
Composite fabric
（non-woven 50gsm）
Breathable
Film
Composite fabric
（non-woven 50gsm）
Breathable Film
Composite fabric
（non-woven 50gsm）
Thickness
μm
9.0
-
12.0
-
-
Areal Density
g/m²
4.1
67
5.0
68
26
88
Air Permeability-
Breathable
Film
sec/100ml
60
47
63
25
146
101
Air Permeability-
Non-woven
sec/100ml
-
228
-
184
-
751
MD
Breaking Strength
Breathable Film N/25mm
Composite fabric N/50mm
19.6
128
20.5
146
11.3
112
TD
Breaking Strength
Breathable Film N/25mm
Composite fabric N/50mm
20.2
122
21.0
132
3.4
46
Nailing Strength
N
3.1
4.3
4.0
5.0
1.0
3.8
Moisture
transmission
g/m2*d
3634
3740
3625
3629
2988
2938
cmH2O
478
489
512
567
70
64
%
99.997
99.995
99.999
99.980
99.9
99.87
Gellec E Series breathable film characteristics
Check List
Unit
16E Series
20E Series
Conventional Breathable
Film
Breathable Film
Composite fabric
（non-woven 50gsm）
Breathable Film
Composite fabric
（non-woven 50gsm）
Breathable Film
Composite fabric
（non-woven 50gsm）
Thickness
μm
16.0
-
20.0
-
-
Areal Density
g/m²
8.0
75
9.5
78
26
88
Air Permeability-
Breathable
Film
sec/100ml
46
31
43
74
146
101
Air Permeability-
Non-woven
sec/100ml
-
144
-
148
-
751
MD
Breaking Strength
Breathable Film N/25mm
Composite fabric N/50mm
16.9
117
16.2
120
11.3
112
TD
Breaking Strength
Breathable Film N/25mm
Composite fabric N/50mm
16.2
126
15.7
92
3.4
46
Nailing Strength
N
1.3
3.7
1.3
3.8
1.0
3.2
Moisture
transmission
g/m2*d
3598
3672
3435
3491
2988
2938
cmH2O
631
639
604
618
70
64
%
99.996
99.982
99.995
99.970
99.9
99.87
